Eremex Avalonia UI Controls Demo Application

The Eremex Avalonia Controls Library includes a powerful collection of UI controls to help you deliver cutting-edge applications for the cross-platform Avalonia UI framework. The advanced controls - from Data Grid and Tree List to Charts and Docking UI - provide rich capabilities to visualize, shape, edit data, create classic navigation interfaces, and more.

repo size

About

The current repository includes a Demo project that enables you to explore and test all the features of the Eremex Controls for Avalonia UI. The demo provides access to the fully functional version of the Eremex Controls Library, which you can use in your projects for evaluation purposes without time restrictions. Note that an unlicensed version of the Library displays trial messages.

For more details about the Controls Library, licensing options, or any other inquiries, please feel free to contact us.

Get Started

Run Demo Online

We’ve created a WASM (WebAssembly) version of this Demo, which you can run directly in your browser. You can access it here:

Online Demo

Certain example modules are disabled in the Online Demo, including:

Examples that demonstrate features not supported in WASM (for instance, the 3D engine).
Examples not optimized for display and interaction in a web browser.

Known limitations: Hyperlinks are not supported.

Run Demo Offline

Clone the repository with the git clone command.
Go to the DemoCenter/DemoCenter.Desktop directory for a classic desktop application, or the DemoCenter/DemoCenter.Web directory for a Web Assembly project.
Run the selected project with the dotnet run command.

Create New Application

Get Started with Eremex Avalonia UI Controls

Data Management Controls

Data Grid

Displays data from an item source as a two-dimensional table, providing rich data shaping and editing functionality.

Large data sources support
Unbound data
Data soring and grouping
In-place editors
Search and data filtration
Data validation
Built-in and custom context menus
Styles

Learn more…

Tree List and Tree View

Renders hierarchical data in the form of a tree. Tree List supports multiple data columns, while Tree View is a single-column control.

Binding to self-referential (flat) and hierarchical data sources
Unbound mode (allows you to manually supply data)
Built-in node checkboxes for row selection
Data sorting
In-place editors
Data search and filtering
Data validation
Built-in and custom context menus
Styles

Learn more…

Property Grid

An efficient solution for browsing and editing properties of one or more objects.

Automatic generation of rows from public properties of a bound object(s)
Manual row creation mode
Combining rows in categories
Combining rows in tabs
Search panel (for quick row location)
In-place editors

Learn more…

Data Visualization Controls

Chart Controls

The CartesianChart, PolarChart and SmithChart controls allow you to integrate the most popular interactive graphs into your application’s UI.

Displaying an unlimited number of data series simultaneously.
Supported series views: Line, Scatter Line, Point, Area, Step Line, Bar, Range Bar, Candlestick, and more.
Available axis types: Numeric, Date-Time, Time Span, Qualitative, and Logarithmic
Scrolling and zooming the entire view and individual axes
High-performance when displaying large data.
Real-time data visualization

Learn more…

Heatmap

The Heatmap control allows you to create a two-dimensional heat map, a chart that visualizes data using color. The control paints each data point within a 2D “map” with a color that corresponds to a value at this point.

Custom color encoding
Grayscale colorization
Customization of the X and Y axes
Crosshair
Strips and constant lines
Scroll and zoom with the mouse
Export the result of the data colorization to a bitmap

Learn more…

Navigation and Layout Controls

Ribbon

The menu inspired by the ribbon UI found in Microsoft Office products.

Simplified and Classic views
Supported items: small and large buttons, toggle buttons, button groups, sub-menus, and more.
Inline and dropdown galleries
Quick Access Toolbar
Tab colorization
Keyboard navigation
Adaptive layout

Learn more…

Toolbars and Menus

Traditional toolbars and menus for your applications.

Supported toolbar item types: buttons, check buttons, sub-menus, item groups, and more
Docking toolbars at the edges of a container
Placing toolbars at any position within the window (for example, at the top of client controls)
Horizontal and vertical toolbar orientations
Adaptive layout of commands
Toolbar layout customization at runtime using drag-and-drop operations
Runtime customization mode for advanced toolbar personalization
Quick customization (without the need to activate customization mode)
Show values in toolbars, and allow users to edit them using in-place editors
Hotkey support, including complex shortcuts, such as Ctrl+R, Ctrl+K
Context menus for external controls

Learn more…

Docking UI

Classic docking interface inspired by the Microsoft Visual Studio IDE.

Dock panels help you create tool panes
Documents (embedded dock windows) allow you to display the main content of your UI
Floating panels
Panel auto-hide functionality
Tab containers
Panel resizing and drag-and-drop
Dock hints
Built-in context menus to perform operations on panels and Documents
MVVM support
Docking on multiple monitors
Save and restore layouts of dock panels between applicaion runs

Learn more…

3D Graphics

Graphics3DControl

Graphics3DControl can visualize 3D models in your Avalonia applications.

API to specify 3D models
Simple materials
Textured materials in PBR format
Displaying multiple 3D models simultaneously
Perspective and isometric camera modes
Model rotation, panning and zooming with the mouse and keyboard at runtime
Rendering on a video card with the Vulkan SDK
MVVM pattern support for specifying 3D models

Learn more…

Editors and Utility Controls

Data Editors

Simple and advanced editors that allow users to edit almost everything - from text and numbers to date/time values and colors. You can use them as standalone controls, or as in-place editors.

ButtonEditor
CheckEditor
ComboBoxEditor
DateEditor
HyperlinkEditor
MemoEditor
PopupColorEditor
SegmentedEditor
SpinEditor
TextEditor

Learn more…

Utility Controls

A collection of useful controls shipped with the Eremex Controls library allow you to create feature-rich applications.

TabControl
SplitContainerControl
GroupBox
CalendarControl
MxMessageBox
CircleProgressIndicator

Learn more…

Themes

The Eremex Controls Library ships with the Eremex.Avalonia.Themes.DeltaDesign package that contains the ‘DeltaDesign’ paint theme for the controls. The ‘DeltaDesign’ paint theme supports two theme variants that help you deliver interfaces with the light and dark color palettes. The theme is also applied to a set of standard Avalonia controls: Button, CalendarControl, CheckBox, Label, ListBox, ProgressBar, RadioButton, Slider, TextBox, and ToolTip.

DeltaDesign Light Theme	DeltaDesign Dark Theme

Supported Operating Systems

Windows

Windows 11
Windows 10

Linux

Ubuntu
Debian

Russian Linux-based OSs

Astra Linux ^*
RedOS ^*

^* Including OS editions optimized for the Elbrus CPU.

macOS

WebAssembly

System Requirements

The following are system requirements to run the current Demo project, and use the Eremex Controls Library for Avalonia UI in your projects.

.NET 6.0+
Avalonia UI Framework v11.2.2+
Developement: IDEs that have Avalonia UI support (Visual Studio 2022 and higher, JetBrains Rider 2021.3 and higher).

Documentation

Product Licensing

The Eremex End-User License Agreement (EULA) fully outlines the terms and conditions for using the Eremex Avalonia UI Controls Library.

The source code included in the current repository is distributed under the terms of the MIT license.

Contact Us

Website

Visit our official website for pricing details and frequently asked questions:

https://eremexcontrols.ru (Русский)
https://eremexcontrols.com (English)

Have a question or feedback? Please contact us at:

https://t.me/emxControls (Русский)
https://t.me/emxControlsEn (English)

More Resources

Convert Windows Forms Applications to Avalonia UI

The WinForms2AvaloniaConverter tool helps you migrate your existing Windows Forms projects to Avalonia UI. The Converter can convert entire projects or individual files.

WinForms2AvaloniaConverter

Eremex Avalonia UI Controls Gallery

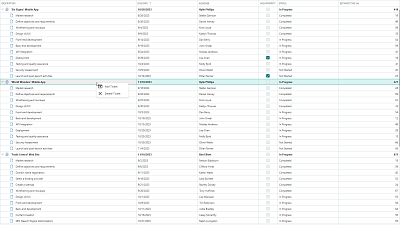

Data Grid (Dark Theme)	Data Grid (Light Theme)
Data Grid - Grouping	Tree List (Light Theme)
Tree List (Dark Theme)	Tree List - Data Searching
Toolbars&Menus (Dark Theme)	Toolbars&Menus (Light Theme)
Editors	Tab Control
Property Grid	Property Grid - Inplace Editing
Docking (Dark Theme)	Docking (Light Theme)
Charts	Charts (Logarithmic)
Charts (Real-Time Data)
